AUDIO TECHNICA RFEXP-PA Pro Audio Spectrum Analyzer

UPC: 602573615089

Description

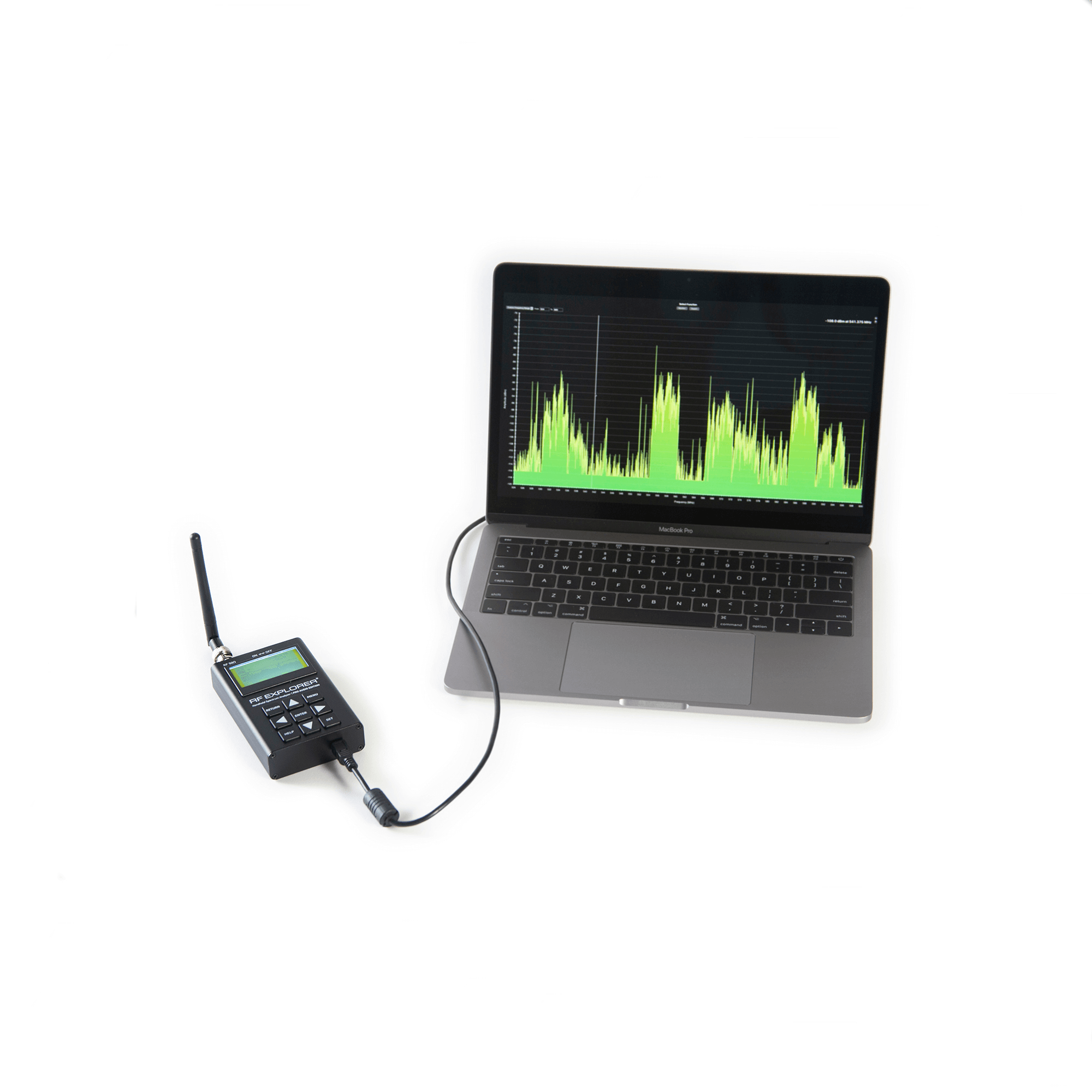

Pro Audio Spectrum Analyzer. The RF Explorer® Pro Audio Edition is a lightweight, portable RF spectrum analyzer designed specifically for use with wireless microphones and in-ear monitor systems.

The RF Explorer Pro Audio Edition’s easy-to-use interface takes the complexity out of RF spectrum analysis for audio, empowering audio engineers and wireless audio system managers to better monitor, manage, and configure their systems in today’s ever-changing RF spectrum landscape.

The spectrum analyzer is equipped with an easy-to-read LCD screen and a high-capacity, rechargeable lithium-ion battery for up to 16 hours of continuous use. Carrying case, UHF band articulating whip antenna, and shielded USB cable are included.

Specifications
Operating frequency: 15 to 2,700 MHz
Impedance: 50 ohms
Max input power: +10 dBm, direct mode; -10 dBm, LNA mode; +30 dBm (1 watt), using internal attenuator
Modes: Peak Max, Hold, Normal, Overwrite, Average
Display: LCD
Battery: 1000 mAh, 3.7V lithium-ion (USB rechargeable)
Dynamic range: -115 dBm – 0 dBm
Average noise floor (DANL): -115 dBm
Dimensions: 70 mm (2.8") W x 130 mm (5.1") H x 25 mm (1.0") D
Weight: 250 g (8.8 oz)
Connector: BNC female
Accessories included: USB cable (Type A male to Type B male), UHF articulating whip antenna, carrying case
