THE VIO COMPLEMENT IN A FLYABLE VERSION
A flyable active subwoofer, equipped with a 18” neodymium woofer and crafted to complete with impressive low-end frequencies and vigorous SPL VIO's accurate, phase coherent wave front. Flyable and groundstack configurations require dedicated adapters.
This subwoofer is developed with a horn loaded design, while maintaining the size of a front-loaded sub cabinet, resulting in a double advantage: smaller dimension (and weight–45.1 kg) and a remarkable lower frequencies response even at a long distance. This makes this sub the perfect low-end extension of VIO arrays whenever a particularly long-throw is needed.

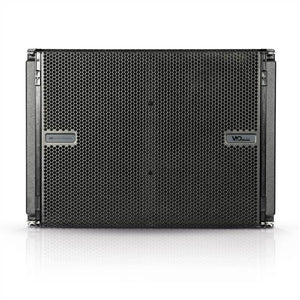

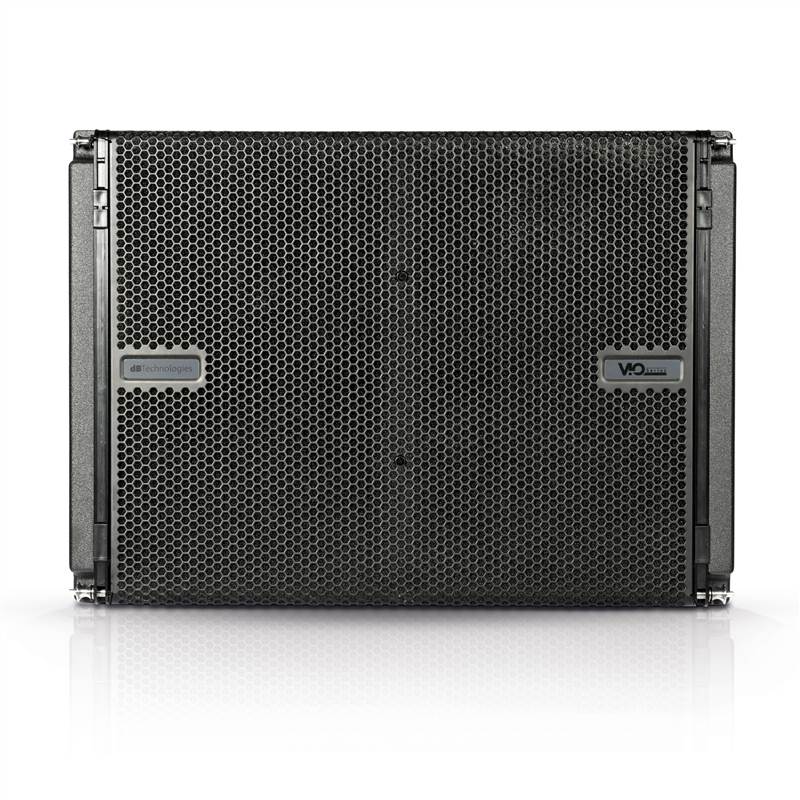

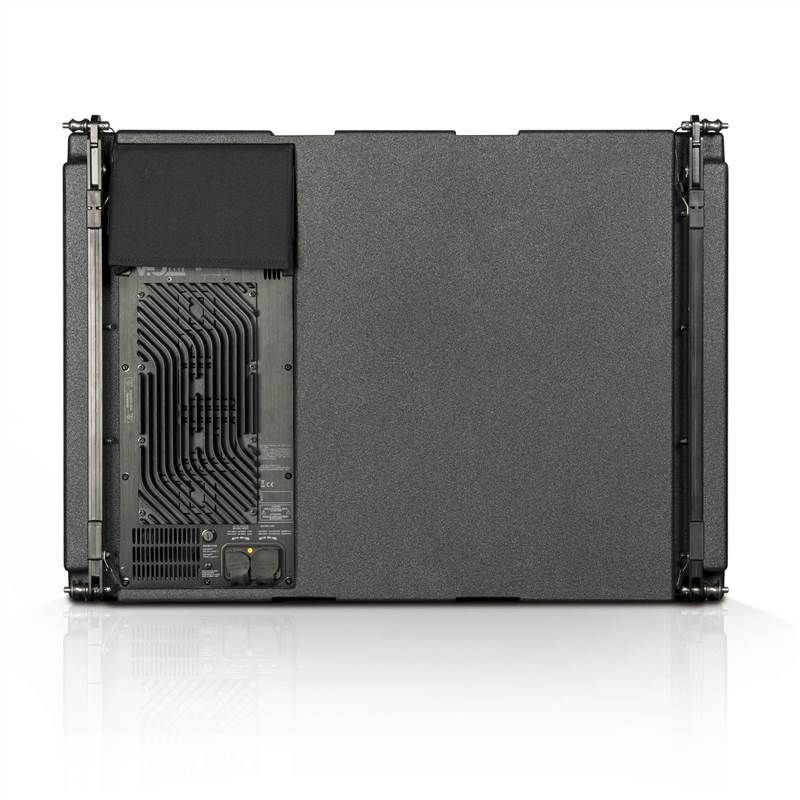

The system’s acoustical plus points are boosted by Digipro G4® 1600W Class D amplifier and equipped with PFC (Power Factor Correction) and SMPS , VIO S118 is highly resistant to line voltage fluctuations. Digipro G4 pre-amp features a slot module allowing system monitoring and control via RDNet. Furthermore, the system is ready for future upgrades with DanteTM digital audio transmission network: in facts, VIO S118 also features a NFC system and a LED on the front grille. The amps also allows users to run auto-test on electronics and transducers before and after use. The amp module features an on board attenuation control and a delay module allowing to reach a max 9.9 ms delay with 0.1 ms steps. The on board cardioid preset process the sound of the backward sub in cardioid configurations (both flown or groundstacked).

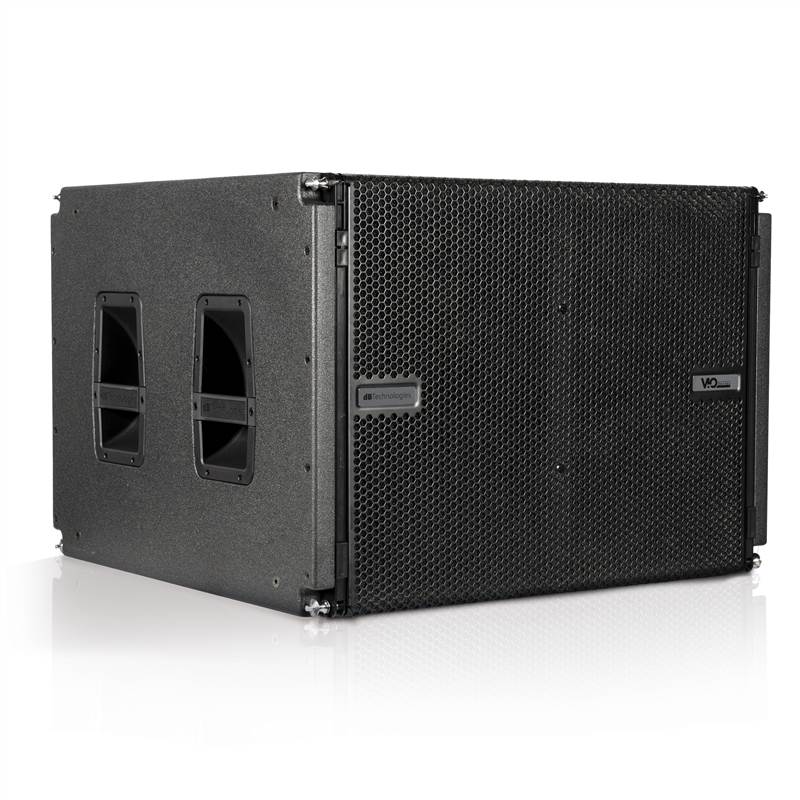

S118’s cabinet is made of sturdy Multiplex plywood covered with a black polyuria finish and equipped with integrated hardware allowing 1 or more subs to be flown in a sub array or on the top of a VIO L210 array.

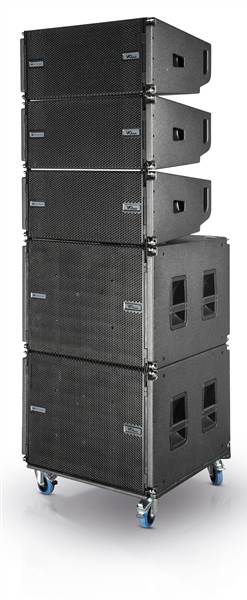

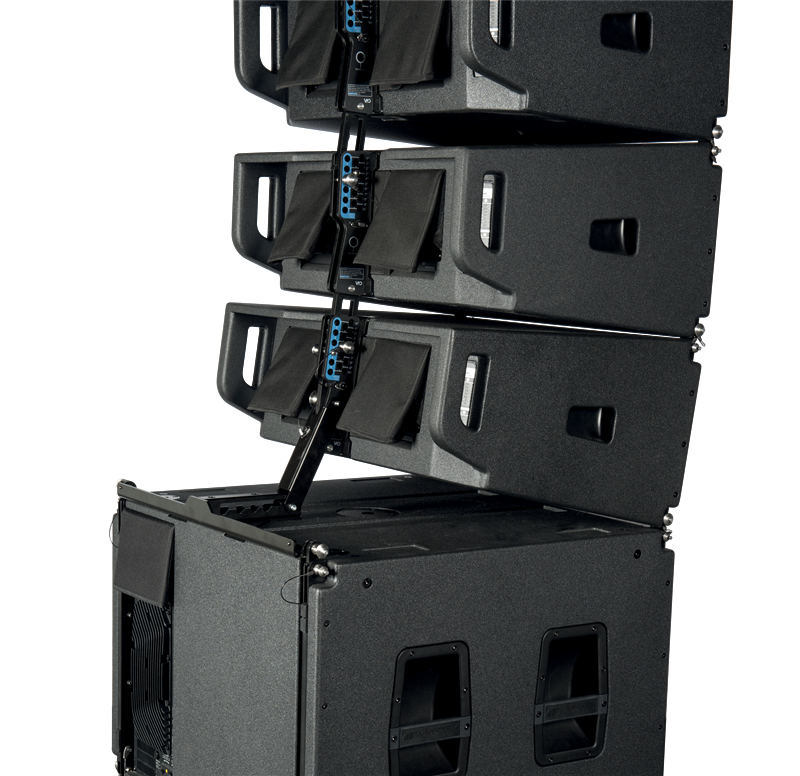

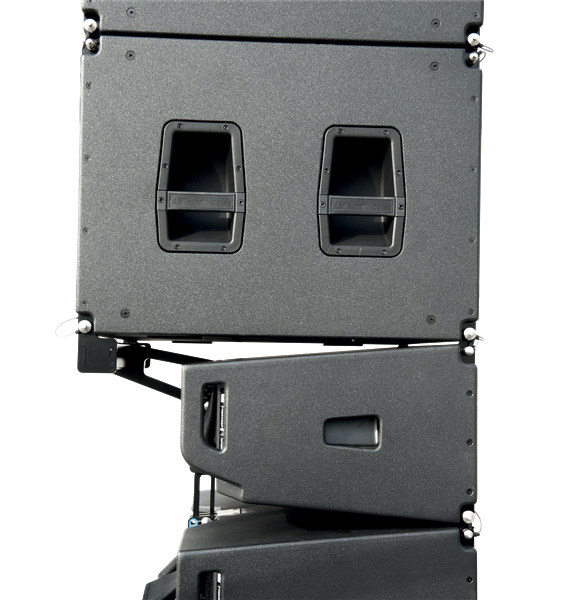

The system can be flown via DRK-210 flybar plus FSA-VIO L210 adapter for attaching VIO L210. GSA VIO L210 is necessary for stacked configurations with VIO L210.
The dedicated DO-VIOS118 trolley can be hooked directly on flown subs easing dismantling and transport operations.
Technical Data
Speaker Type
Active Horn-Loaded Flyable Subwoofer
Acoustical data
Frequency Response [- 6 dB]
39 Hz to Cut Freq (X-Over Dependent)
Frequency Response [- 10 dB]
36 Hz (HPF)
Max SPL
139 dB
LF
1x18", Neodymium
Voice Coil LF
4 "
Directivity
Omnidirectional
Amplifier
Amp Technology
Digipro® G4
Amp Class
Class D
RMS Power
1600 W
Peak Power
3200 W
Cooling
Convection
Power Supply
1600 W with PFC
Processor
Controller
DSP 32
AD/DA Converter
24 bit 96 kHz
Limiter
RMS, Peak, Thermal
Delay Option
0-9.9 ms internal
Steps of 0.1 ms
Crossover Frequency LF-HF
60-110Hz + Full range
LF-Xover out slope
24 dB/Octave
Input
Signal Input
1xXLR balanced
Signal Output
1x XLR balanced (link or X-over)
1xRJ45 LINK (RDNet)
Expansion Card
1xRJ45 IN (RDNet)
1xRJ45 LINK (RDNet)
Power Socket
1xPowerCON TRUE1 IN
1xPowerCON TRUE1 OUT
Controls
1x Input Attenuation Rotary Switch
1x Rotary Encoder (Delay 9.9 ms)
1XPolarity Inversion Switch (0° or 180°)
1xCardioid Mode Switch
1x X-Over Freq Switch (60-110 Hz + Full Range
1x System Auto-test
Mechanics
Housing
Multiplex plywood
Polyurea painted
Handles
2x Per Side
Aluminium
Pole Mount
M20 Thread
Raincover
Included
Rigging Points
2xPick Points on top to fix DRK-210 rigging frame (stack use)
4x Pick Points on top and 4x on bottom for rigging
Width
720 mm (28.34 in)
Height
520 mm (20.47 in)
Depth
695 mm (27.36 in)
Weight
45.1 kg (99.42 lbs)
Notes: The data are not binding; dBTechnologies reserves the right to modify the data at any time and without previous notice.
**AES75: @1 meter, free field, with Music-Noise
