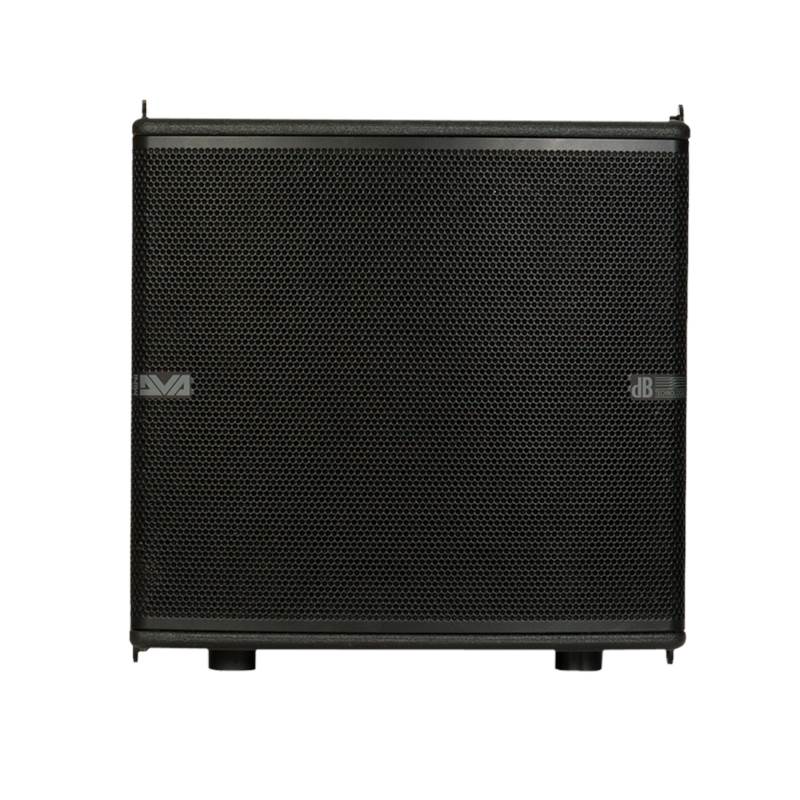

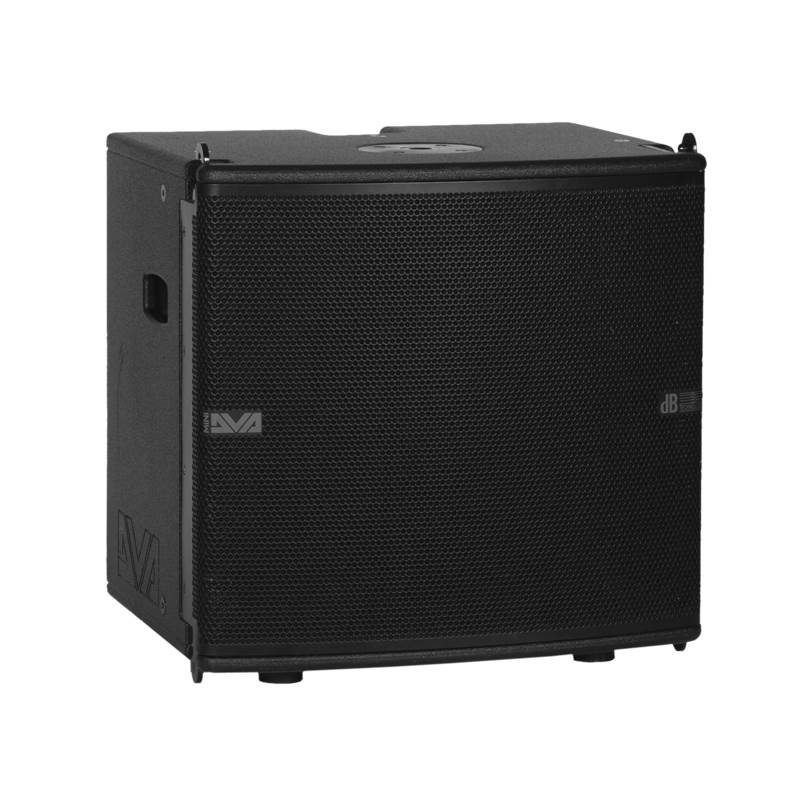

FLYABLE ACTIVE BASSREFLEX SUBWOOFER
700W RMS DIGIPRO G3 AMP TECHNOLOGY
131 dB MAX SPL
FREQUENCY RESPONSE [-10 dB]: 40 - 165 Hz
LF: 1 x 12”, 3” v.c.
Weight: 26.5 kg (58.4 lbs)
This subwoofer delivers an incredible SPL considering its very compact dimensions, and it can be easily used both flown and ground stacked.

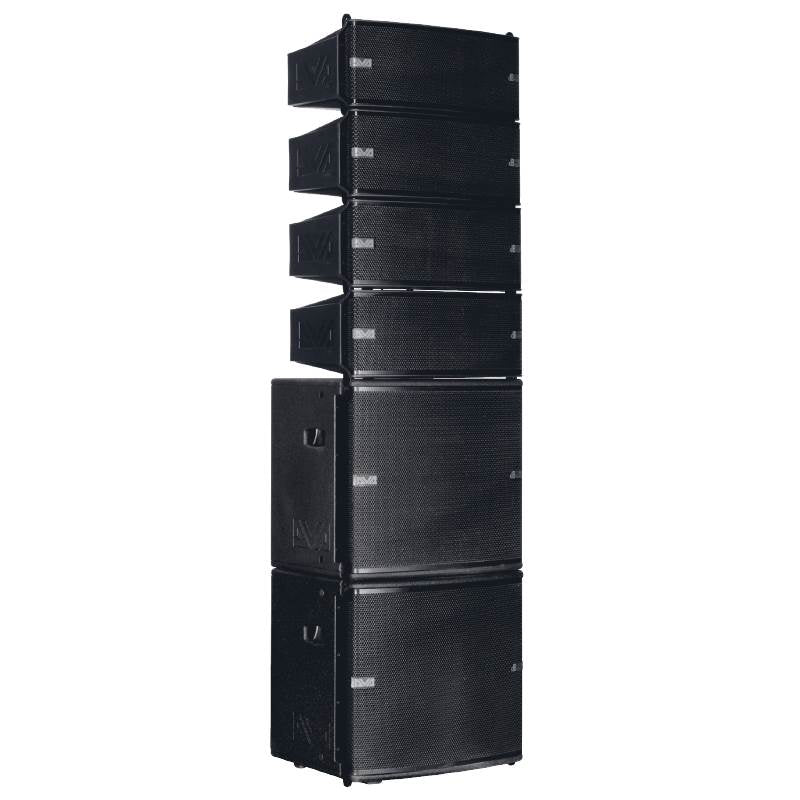

The smart design of the feet allows the user to avoid the dull removal of the flying brackets: it is possible to remove the feet in few seconds and screw them again upside-down. In this way any contact between the flying brackets and the ground is avoided, as only the rubber feet will touch it. A practical X-over out can be used to feed signal straight to the line arrays modules, simplifying considerably the signal and power cabling.
DVA MS12 comes with the new generation of exclusive digital amplifiers Digipro G3, engineered by dBTechnologies and distinguished by an exceptionally lightweight design and a very remarkable efficiency.

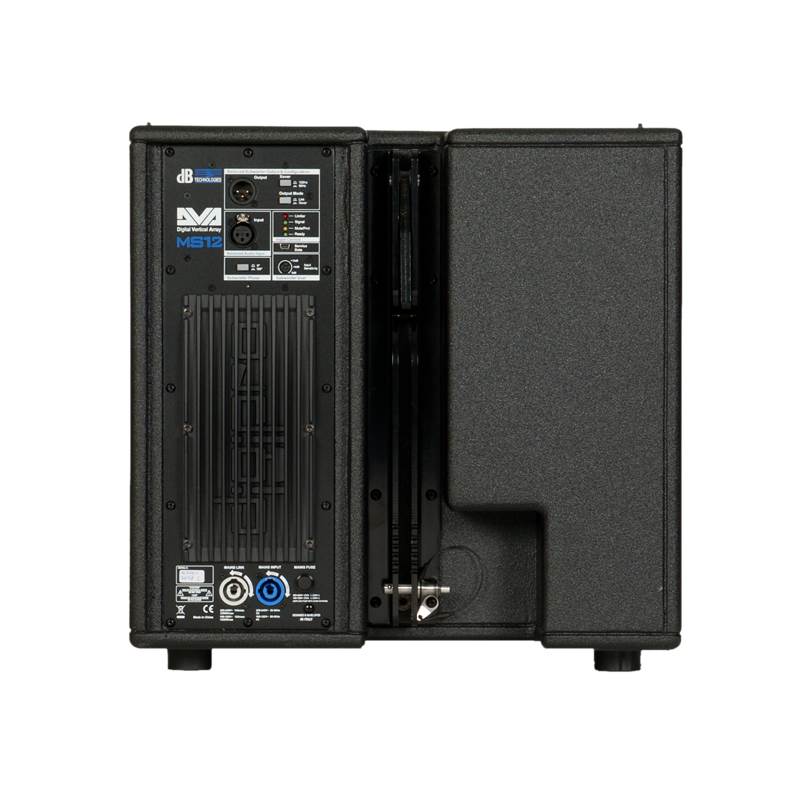

An integrated USB B-type port on the DVA MS12 amplifier allows the user to access the complete telemetry of the sub, monitoring the status of the speaker, including total playing hours, temperatures and performances reports.
Technical Data
Speaker Type
Active bass reflex flyable subwoofer
Acoustical data
Frequency Response [-6dB]
45 - 140 Hz
Frequency Response [-10dB]
40 - 165 Hz
Max SPL
131 dB
LF
12"
Voice Coil LF
3"
Directivity
Omnidirectional
Amplifier
Amp Technology
Digipro® G3
Amp Class
Class D
Power Supply
700W SMPS with PSU Auto-range (110V~ and 220V~)
LF Amp
700 W RMS (1400 W Peak)
Cooling
Convection
Processor
Controller
DSP 56 bit
AD/DA Converter
24 bit/48 kHz
Controls
X-Over frequency selection, Phase selection (0° or 180°), Outputs mode selection (Link/X-over), Mini-USB type “B” port (service data)
Limiter
Dual active, RMS/Peak, Thermal
Crossover Frequency LF-HF
90 - 120 Hz
LF X-over out slope
24 dB/Octave
Mechanics
Housing
Multiplex plywood - Polyurea painting

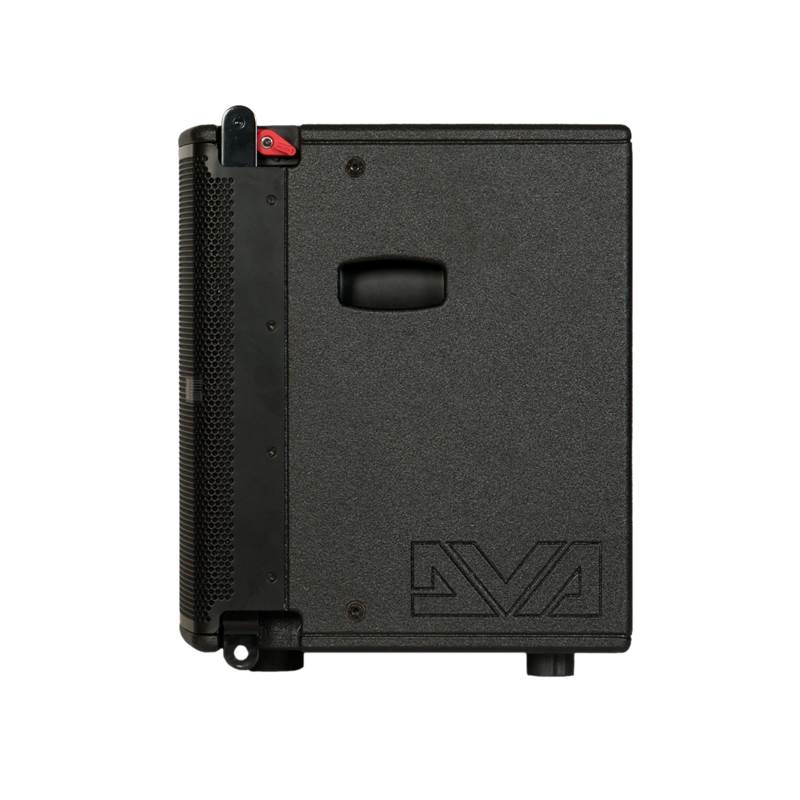

Handles
1x left side, 1x right side
Feet
4x Dual Position Reversable Feet (flying/stacking mode)
Fittings
M20 screw for pole mount on top side, integrated hardware with fast lock mechanics
Width
460 mm (18.1 in)
Height
430 mm (16.9 in)
Depth
385 mm (15.2 in)
Weight
26.5 kg (58.4 lbs)
Notes: The data are not binding; dBTechnologies reserves the right to modify the data at any time and without previous notice.
**AES75: @1 meter, free field, with Music-Noise
