2-WAY ACTIVE LINE ARRAY MODULE
400 W RMS DIGIPRO G3 AMP TECHNOLOGY
131 dB MAX SPL
USABLE BANDWIDTH [- 6 dB] 80 - 19.000 Hz
HF: 2x 0.75", 2” v.c. - NEODYMIUM
LF: 2x 6.5", 1.75” v.c. - NEODYMIUM

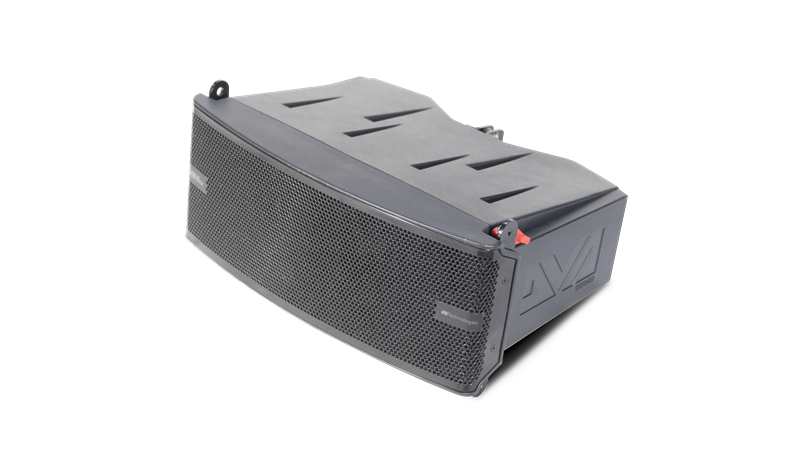

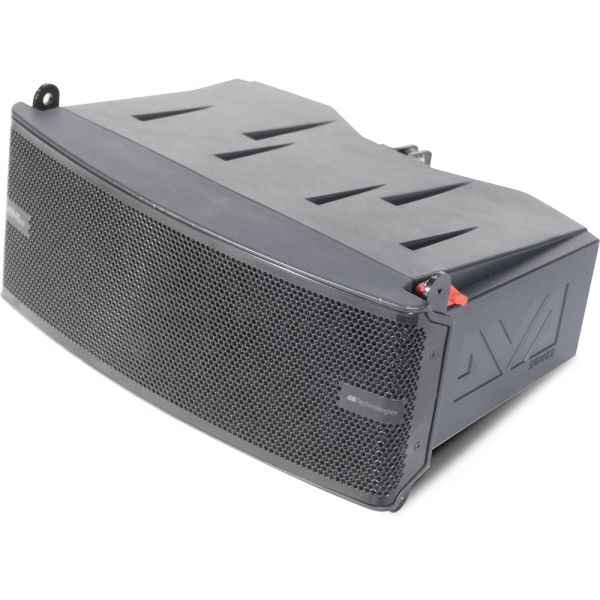

Enhancing ease of use as well as versatility thanks to complete network capability, DVA MINI G2 provides stunning power and sound pressure in an extraordinary lightweight and compact enclosure.
Each element is equipped with 2x6.5” neodymium woofers and 2x1” high-frequency neodymium compression drivers and driven by a Class D Digipro G3 amp module providing 400 W RMS. The system can reach an impressive 131-dB-per-unit sound pressure level.
The system’s advanced sound processing features linear-phase FIR filters allowing an excellent linear response, resulting in a clear and intelligible audio performance from every listening position.
DVA MINI also features complete network capability via Aurora Net control software which allows EQ, delay and processing customization and real time monitoring of the PA system in use. Nevertheless, the on-board 1 rotary provides for 7 different presets to adapt the system to basic applications.

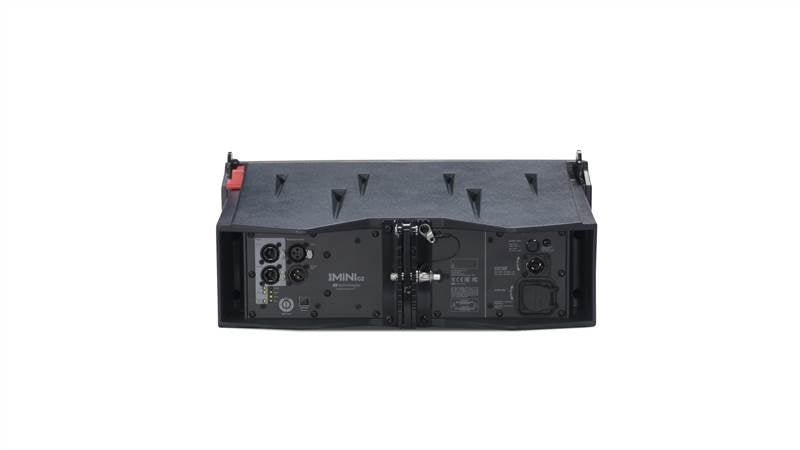

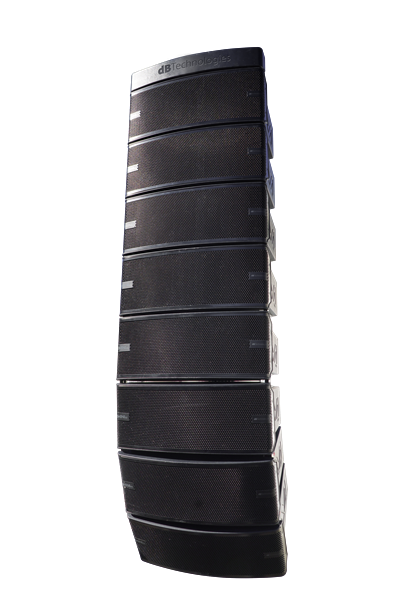

An integrated quick-lock system links enclosures by simply placing one module below a companion module and sliding it towards one side until it locks in place. The rigging hardware is on the rear of every cabinet allowing for incremental steps for line array positioning. Extra-light DRK M5 fly-bar easily allows a fast rigging while DSF M2 accessory enables the system to be stacked on a standard pole.
The cabinets are constructed of reinforced polypropylene packing extra power in compact dimensions (460x190x345 mm) and feather-weight (only 8.4 kg per module).
Technical Data
Speaker Type
2-Way Active Line Array Module
Acoustical data
Usable Bandwidth [-10 dB]
75 - 20.000 Hz
Frequency Response [-6 dB]
80 - 19.000 Hz
Max SPL
131 dB per unit
HF
2x 0.75"
Type HF
Neodymium
Voice Coil HF
1"
LF
2x 6.5"
Type LF
Neodymium
Voice Coil LF
1.75"
Directivity (HxV)
15° x 100°
Amplifier
Amp Technology
Digipro® G3
Amp Class
Class D
RMS Power Amp
400 W
Cooling
Convection
Processor
Controller
DSP 56 bit
AD/DA Converter
24 bit/48 kHz
Controls
1x Rotary Encoder (8 presets)
Limiter
Multiband, RMS/Peak, Thermal
Crossover Frequency LF-HF
1900 Hz
Slope LF-HF
24 dB/Octave
Advanced DSP functions
Linear Phase FIR Filters
Input
Signal Input
1x XLR fem, Bal.
Signal Output
1x XLR male, Bal.
Power Supply
400W SMPS with PSU Auto-range (110V~ and 220V~)
Power Socket
1x PowerConTRUE1 In 1x PowerConTRUE1 Out
Mechanics
Housing
Polypropylen PP
Handles
2x back side
Fittings
Integrated hardware with fast lock mechanics
Width
460 mm (18.1 in)
Height
190 mm (7.5 in)
Depth
345 mm (13.6 in)
Weight
8.4 kg (18.5 lbs)
Notes: The data are not binding; dBTechnologies reserves the right to modify the data at any time and without previous notice.
**AES75: @1 meter, free field, with Music-Noise
