The Sub8 PRO combines advanced DSP technology with outstanding acoustic performance, making it an ideal foundation for compact monitoring systems. This networked subwoofer features a high-excursion 8” woofer, FEA-optimized bass port and powerful Class D amplifier.
An onboard Ethernet connection provides access to ADAM Control and its range of management and calibration tools. Users can manually time-align the subwoofer, apply four bands of parametric EQ and upload Sonarworks calibration profiles. Firmware updates can also be managed through the application, allowing future functionality to be added.
The Sub8 PRO offers Stereo, LFE, and Wide modes for conventional, immersive and full-range applications. Its robust wooden cabinet and protective metal grille ensure durability, with a 5-year warranty available upon product registration.
Fiber-reinforced, paper-based 8” Woofer
Total Peak Amp. Power: 200 W
Calibration options: ADAM Control, SoundID Reference by Sonarworks, Backplate
Frequency Response @ -6 dB: 26 - 300 Hz
Max. SPL at 1 m (Peak): 105 dB SPL
General Data
Cabinet Design: Front Fire and front ported
Cabinet Material: Vinyl wrapped MDF and painted MDF front panel
Power consumption (max, standby): 400 W, 2.5 W
AC Input Voltage: 100 – 240 V, 50/60 Hz
Power Rating: 400 W max.
Operating Conditions: -10° C to +40° C (+14° F to +104° F); <75% RH, non-condensing
Weight: 15.3 kg (33 lbs 12 oz)
Dimensions (Height x Width x Depth): 385 mm x 300 mm x 365 mm (15 1/8″ x 11 6/8″ x 14 3/8″)
Warranty: 5 years (2 years warranty plus 3 years optional with product registration)
Delivery Contents: Sub8 PRO subwoofer, power cable, Quick Start Guide

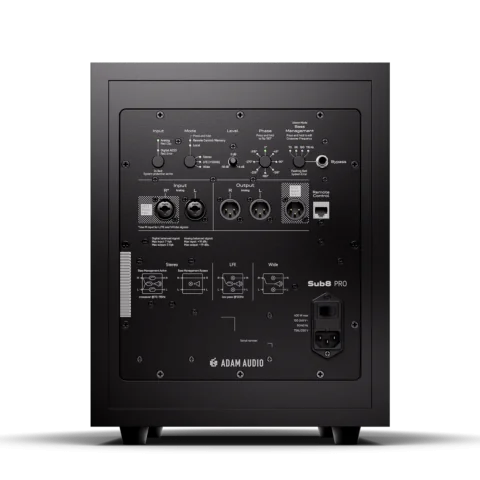

Audio Connectors
Analog Inputs: 2 x XLR / TRS combi
Digital Input: XLR AES3
Analog Input Impedance: 25 kOhm
Digital Input Impedance: 110 Ohm
Max. Input Level: +19 dBu
Analog Outputs: 2 x XLR
Digital Outputs: XLR AES3
Amplification
Amplifier Type: PWM
Peak (10% THD, limiter deactivated): 325 W
RMS (1% THD, limiter deactivated): 200 W @ 3 Ohm
Control Options [via Network]
Networking Connector: RJ45
Connection Type: Ethernet
Communication Protocol: AES70 / TCP
Control Software: ADAM Control (Windows and MacOS available)
