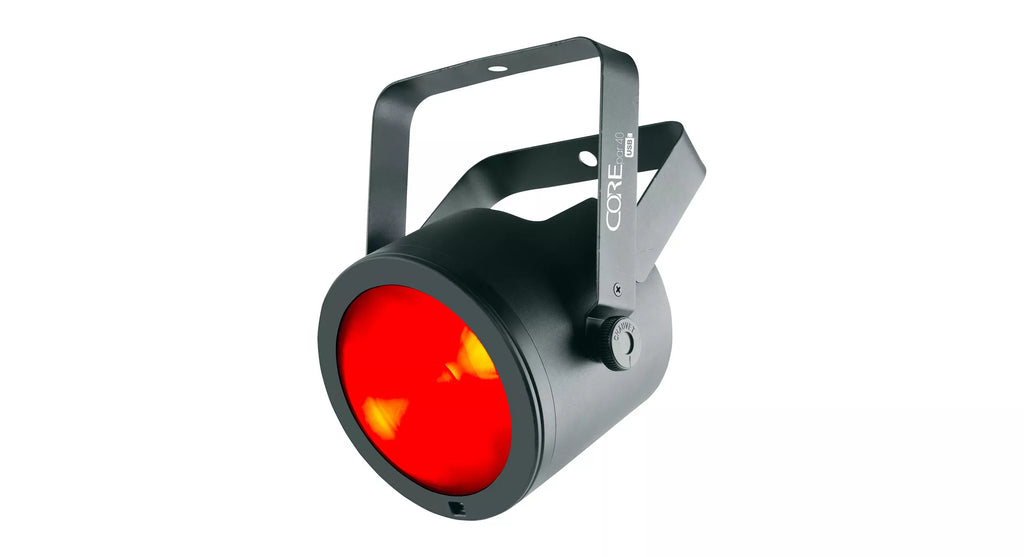

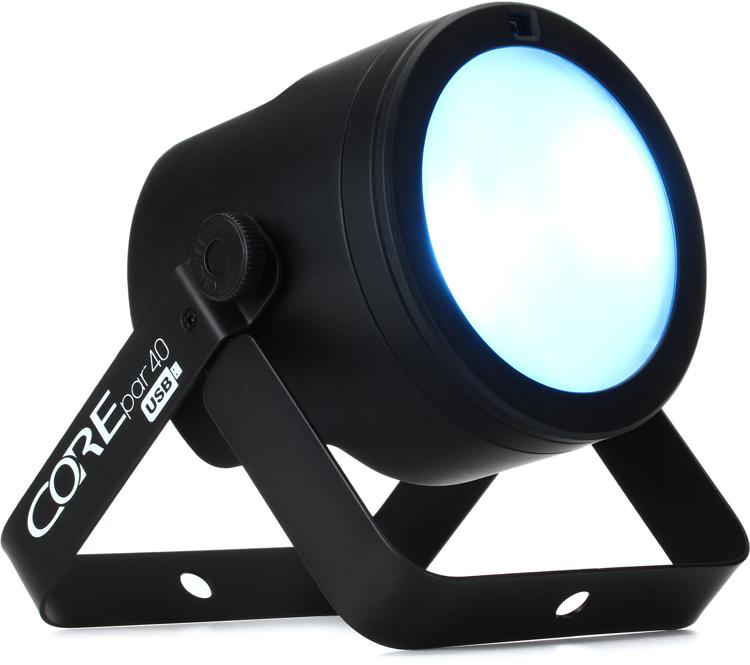

COREpar 40 USB produces a full spectrum of light with the unsurpassed color mixing of COB (Chip-on-Board) technology and includes a separate magnetic lens to provide the flexibility to go from an ultra-wide wash to a narrow beam in seconds. High frequency LED dimming achieves smooth LED fades and ensures a flicker-free performance in video applications. Multiple control options include DMX, master/slave and sound activation modes as well as wireless control thanks to D-Fi USB compatibility. Point-and-shoot operation of static colors and automated programs is also possible with the optional IRC REMOTE (sold separately). The unit’s robust sit-flat housing features power and DMX outlets on the side.
Highlights
COB (Chip-on-Board) LED produces a full spectrum of light with unsurpassed color mixing
D-Fi™ USB compatibility for wireless Master/Slave or DMX control
Included magnetic Fresnel lens allows the flexibility to go from ultra-wide to narrow beam in seconds
Withstand the harshness of traveling from gig to gig with a robust housing

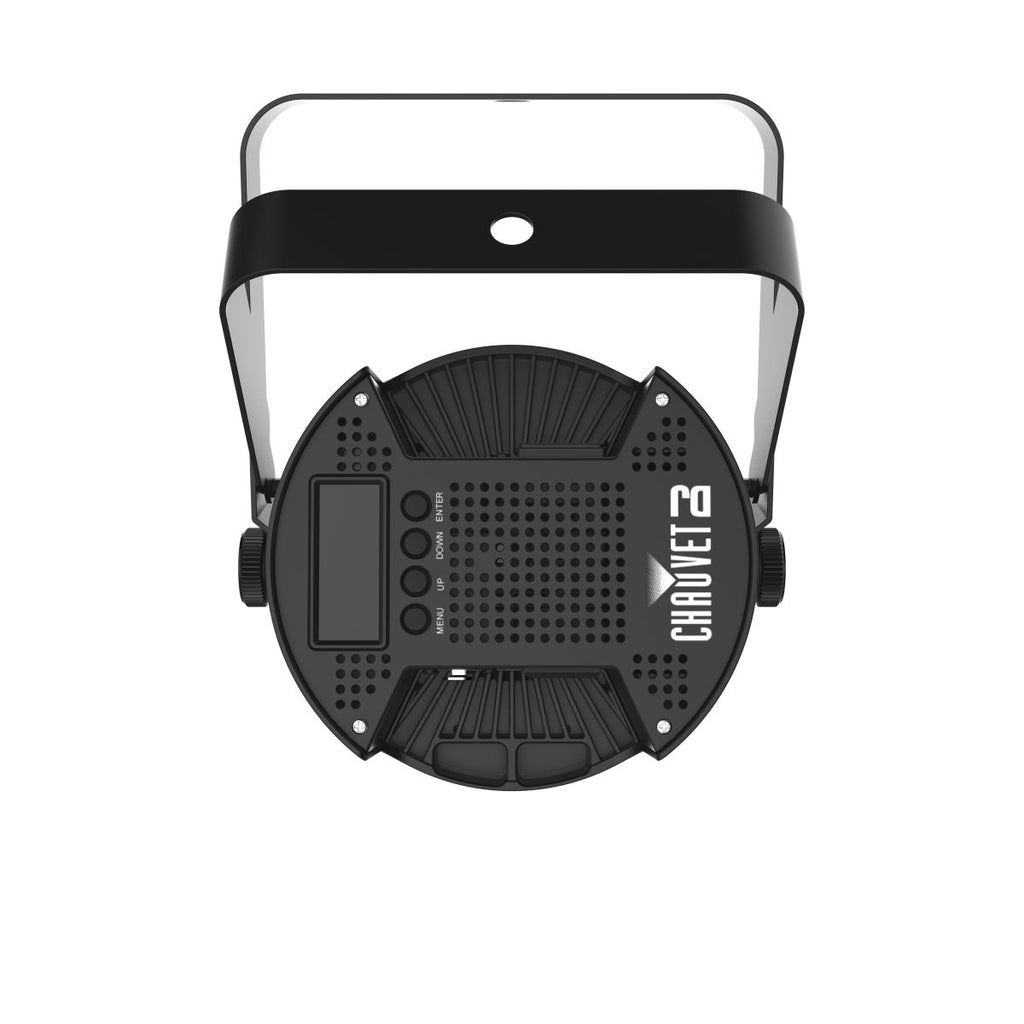

Sit-flat housing design hugs the floor and features power and DMX outlets on the side of the unit
Achieve flicker-free video operation with high-frequency LED dimming
Save time running cables and extension cords by power linking multiple units
Point-and-shoot operation of static colors and automated programs with the optional IRC-6 remote
Multiple control options include DMX, Master/Slave and Sound-Active modes
Create customized colors using the built-in LED display
Achieve smooth LED fading with built-in dimming curves
Easily transports in the optional CHS-30 VIP Gear Bag
Compact design easily fits inside sticks of TRUSST®
40 watt COB (Chip-on-Board) LED produces a full spectrum of light with unsurpassed color mixing
Robust and Sit-flat housing and Magnetic Fresnel lens allows you to go from ultra-wide to narrow beam
Specifications
DMX Channels:3 or 8
DMX Connectors:3-pin XLR
Light Source:1 COB LED (tri-color RGB) 40 W (2 A), 50,000 hours life expectancy
Strobe Rate:0 to 33 Hz
PWM Frequency:2,000 Hz
Beam Angle:40° (without lens) 20° (with lens)
Field Angle:85° (without lens) 28° (with lens)
Illuminance:243 lux @ 2 m (without lens) 1,660 lux @ 2 m (with lens)
Power Linking:11 units @ 120 V; 21 units @ 230 V
Input Voltage:100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current:47 W, 0.7 A @ 120 V, 60 Hz 46W, 0.4 A @ 230 V, 50 Hz
Weight:3.4 lb (1.6 kg)
Size:5.2 x 7.4 x 9.5 in (132 x 189 x 242 mm)
Approvals:CE
Optional Controllers:IRC-6
WHAT'S INCLUDED
Power cord
Magnetic Fresnel lens
Warranty card
Quick Reference Guide
Hanging bracket with mounting
